* Durable 304 stainless burner steel construction.

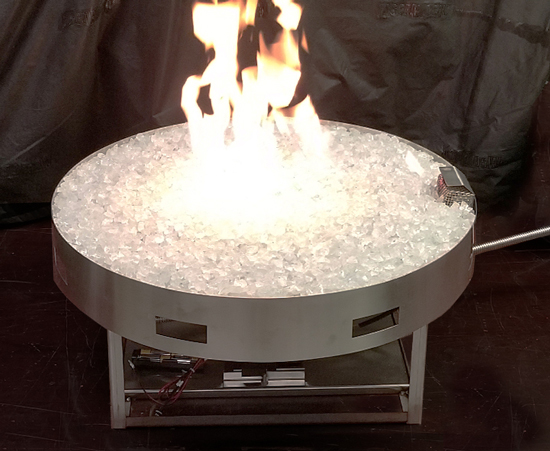

304 brushed stainless steel enclosure shown with standard clear glass media.

Dimensions*: 38" (O.D) x 29" (I.D) x 16.5" (H)

   *)  Custom sizes for enclosure and cover are available





* Electronic ignition.

* S.I.T. controls, stainless steel pilot, ON/OFF switch.

* 100,000 Btu/h input rate for Natural Gas or LP.

*  Matching 304 brushed stainless steel rain cover.

Available Options:

* Gas burner only for custom installs. Dimensions: 26" (D) x 12" (H)



*  Various optional topping media available (see below)

Available media options:

Clear Glass	Black Glass	Dark Green Glass

Click on image bellow to download additional information in PDF format :

English  Manual             French  Manual                       Current  Brochure

Specifications for the CAMPFIRE Outdoor Gas Firepit burner:

  Model:

CAMPFIRE-N

CAMPFIRE-P

  Gas fuel

Natural Gas

Propane

  Input Rate ( Btu/h)

100,000

100,000

  Inlet Pressure (MAX)

10.5" w.c.

13" w.c.

  Inlet Pressure (MIN)

 5.0" w.c.

11" w.c.

  Diameter (enclosure)

 38"

38"

  Height (without optional cover)

16"

16"
